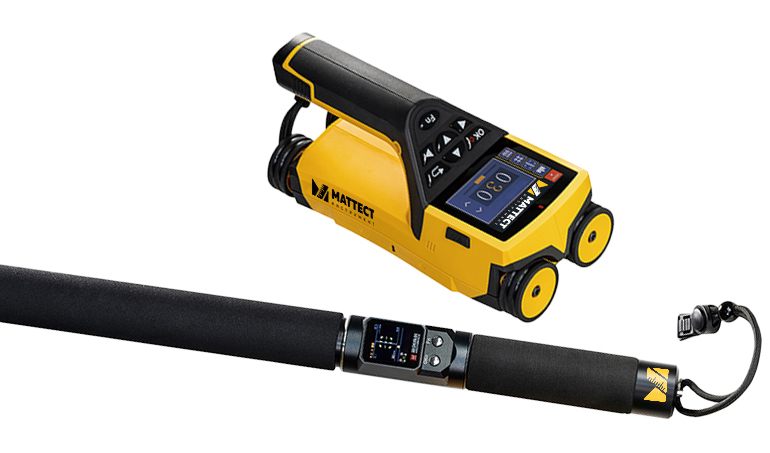

MIT ARMOTREK 2-1
MIT ARMOTREK 2-1 PRO
MIT ARMOTREK 2-1 PRO-2
MIT ARMOTREK 2-1 PRO-3
MIT ARMOTREK 2-1 PRO-4
MIT ARMOTREK 2-1 PRO-5
Concrete testing
Non-destructive testing concrete strength rebound hammerohm
MIT ARMOTREK 2-1
117 000 ₽ incl. VAT
130 000 ₽ −10% off
Line PRO
С with calibration on 1 year
Warranty 12 months
Delivery Russia and CIS
Training and video tutorials
Download catalog
Description
Standard kit
Application
Certificates
Documentation

MIT STRIKE 225-1 — digital rebound hammer for non-destructive testing concrete strength by the elastic rebound method. Designed for rapid determination concrete strength directly on construction site or when technical building inspection and structures.

Built-in threeaxis gyroscope automatically compensates the tilt angle when during tests — this key difference from base model STRIKE 225. Impact energy 2,207 J complies with international standardat hammers of type N.

Results are displayed on on colour 2,8-inch display. Memory — to 1000 test series and 100 000 impacts. Data transfer via USB and Bluetooth in application M-IT. Battery 3200 mAh — up to 3 days work.

The standard kit includes everything needed for immediate startup.

Kit information not specified by the manufacturer
1
Non-destructive testing concrete strength when building inspection and structures
2
Technical diagnostics structures — actual strength assessment with angle compensation impact
3
Quality control of concrete works on construction sites
4
Conformity confirmation concrete strength design requirements
5
Rise Monitoring concrete strength in during curing process
Status: is supplied with with calibration. Entry in progress in SI register.
Photo not uploadedGOST
Certificate GOST 22690-2015
В during acquisition
Photo not uploadedCALIBRATION
Certificate about calibration
MPI: 12 months
Files not loaded. Add via administrative panel.
Datasheet MIT STRIKE 225-1
PDF · Not loaded
User manual
PDF · Not loaded
Standard
Key advantages
1
Less demanding to surfaces — not requires careful preparation by compared to with impactbut-impulsive deviceami.
2
Coefficient of variation less than 10% — high repeatability results by homogeneous concrete.
3
Impact energy 2,207 J — deeper assessment of concrete structure, stable results.
4
15 calibration curves — ability to configure for specific conditions tests.
5
Compatibility with world-class standardami — advantage when working with foreign companies.
PRO
Why this device ruler series PRO
1
Automatic angle compensation impact — a built-in accelerometer detects the angle and automatically adjusts result.
2
Full data entry for reportа — customer, project, site. Flexible coefficient settings.
3
Data transfer on application M-IT — synchronization with cmartphoneohm, cloud storage.
4
BY for generation reportov — automatic report generation without manual entry.
Models and prices
Compare MIT STRIKE 225-1 and MIT STRIKE 20-1
Specification MIT STRIKE 225-1 ★ MIT STRIKE 20-1
Price incl. VAT 117 000 ₽130 000 117 000 ₽130 000
ApplicationConcrete strengthMortar strength in masonry
Measurement range10–60 MPa2–15 MPa
Impact energy2,207 J0,196 J
Gyroscope (auto-angle)✓ 3-axis✓ 3-axis
Display2,8″ IPS color2,8″ touchscreen 400×240
Data transferUSB, Bluetooth, M-ITUSB, 4G, M-IT
Memory1000 series / 100 000 beat.Built-in
BatteryLi-ion 3200 mAhLi-ion 3200 mAh
Battery lifeup to 3 daysup to 3 working days
Weight1,186 kgNo data
StandardыGOST 22690-2015GOST 22690-2015
Warranty12 months12 months
Accessories
Calibration anvils of the MIT H-1
Photo not uploaded
MIT H-1-80
Calibration anvil. Nominal rebound value: 80 units
Photo not uploaded
MIT H-1-60
Calibration anvil. Nominal rebound value: 60 units
Photo not uploaded
MIT H-1-40
Calibration anvil for low rebound values. Nominal value: 40 units
Video, photos and articles
See the device in action
MIT STRIKE 225-1 — field operation
Field operationAutomatic angle compensation, data transfer
Application M-IT and reports
Application M-ITSync, reports, cloud
Similar devices in this category
Concrete testing — all devices in this category
MIT ARMOTREK 2-1 PRO
Concrete testing
MIT STRIKE 225 — rebound hammer Standard
108 000 ₽
MIT ARMOTREK 2-1 PRO-6
Concrete testing
MIT ARMOTREK 1-1 — concrete cover thickness
117 000 ₽
MIT ARMOTREK 2-1 PRO-6
Concrete testing · PRO
MIT ARMOTREK 2-1 — rebar scanner PRO
225 000 ₽
Concrete testing
MIT STONE 55м — ultrasonic flaw detector
175 500 ₽
FAQ
Answers to questions about MIT STRIKE 225-1
Does it have automatic impact angle detection?
+
Yes, the built-in accelerometer automatically detects the impact angle and corrects the test result.
В what is the difference from MIT STRIKE 225?
+
MIT STRIKE 225-1 equipped with an accelerometer for automatic angle detection impact, a touchscreen display, advanced settings and with support data transfer on cmartphone in application M-IT.
What is the strength measurement range?
+
MIT STRIKE 225-1 measures concrete strength from 10 to 60 MPa.
Can custom calibration curves be built?
+
Yes. В devicenot implemented a built-in calibration, plus possibility of building 15 of your own calibration curves. Also allows changing Cs coefficient.
How does the Schmidt hammer differ from the impact-pulse method?
+
Schmidt hammer MIT STRIKE has impact energy 2,7 toJ versus 0,3 toJ at impact-pulse devices. This allows analysing concrete to depth 10–20 cm. Scatter results multiple less — data is more stable.
Can the correlation coefficient (Cs) be adjusted?
+
Yes, this is available.
