MIT STRIKE 225-1 — digital rebound hammer for non-destructive testing concrete strength by the elastic rebound method. Designed for rapid determination concrete strength directly on construction site or when technical building inspection and structures.
Built-in threeaxis gyroscope automatically compensates the tilt angle when during tests — this key difference from base model STRIKE 225. Impact energy 2,207 J complies with international standardat hammers of type N.
Results are displayed on on colour 2,8-inch display. Memory — to 1000 test series and 100 000 impacts. Data transfer via USB and Bluetooth in application M-IT. Battery 3200 mAh — up to 3 days work.
The standard kit includes everything needed for immediate startup.
| Specification | MIT STRIKE 225-1 ★ | MIT STRIKE 20-1 |
|---|---|---|
| Price incl. VAT | 117 000 ₽130 000 | 117 000 ₽130 000 |
| Application | Concrete strength | Mortar strength in masonry |
| Measurement range | 10–60 MPa | 2–15 MPa |
| Impact energy | 2,207 J | 0,196 J |
| Gyroscope (auto-angle) | ✓ 3-axis | ✓ 3-axis |
| Display | 2,8″ IPS color | 2,8″ touchscreen 400×240 |
| Data transfer | USB, Bluetooth, M-IT | USB, 4G, M-IT |
| Memory | 1000 series / 100 000 beat. | Built-in |
| Battery | Li-ion 3200 mAh | Li-ion 3200 mAh |
| Battery life | up to 3 days | up to 3 working days |
| Weight | 1,186 kg | No data |
| Standardы | GOST 22690-2015 | GOST 22690-2015 |
| Warranty | 12 months | 12 months |

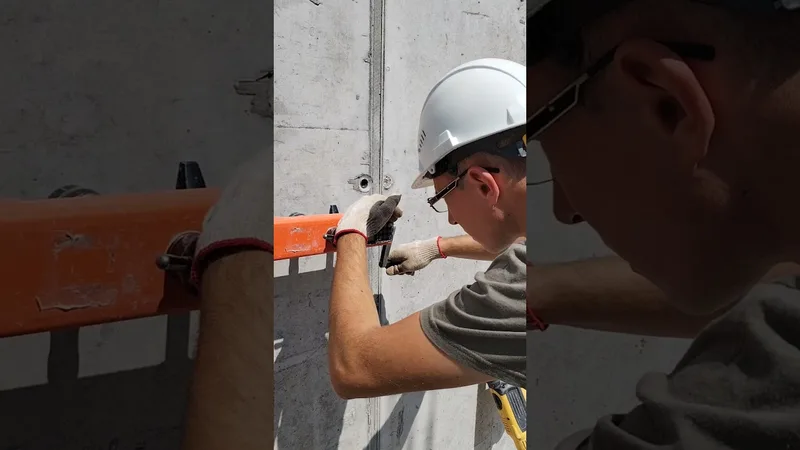

Live measurement of concrete strength on-site using the elastic rebound method per GOST 22690. Automatic impact-angle compensation, Bluetooth data transfer to the M-IT app, and automatic generation of the test report.
M-IT mobile app for the MIT STRIKE 225-1 rebound hammer: receives measurement results, performs statistical processing of the series, automatically generates test reports per GOST 22690, and syncs data to the cloud across devices.
Overview of the MIT STRIKE 225-1 PRO digital rebound hammer: measuring concrete strength on-site, automatic data transfer to the M-IT app, report generation per GOST 22690, differences between the elastic rebound and impact-echo methods.
Overview of the MIT STRIKE 225-1 PRO digital rebound hammer: measuring concrete strength on-site, automatic data transfer to the M-IT app, report generation per GOST 22690, differences between the elastic rebound and impact-echo methods.
Multi-month parallel tests of the MIT STRIKE 225-1 digital rebound hammer (elastic rebound method) and the pull-off method with ONIKS-OS on 34 concrete samples (B20-B35). Average Kc = 1.003 — full compliance with GOST 22690-2015.
Read article →From Ernst Schmidt's revolver-style design of 1948 to the digital MIT STRIKE 225-1 with cloud sync. A walkthrough of the key stages of rebound-hammer evolution and the principles of the elastic rebound method for non-destructive concrete strength testing per GOST 22690.
